20DP-K-30 (05090097): Differential Pressure Swichgage® W/ Rigid Contact

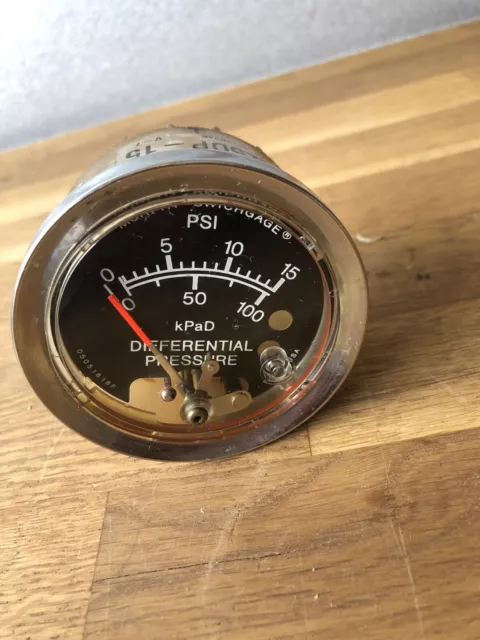

The A20DP-K-15 Differential Pressure Swichgage with Rigid Contact is a 2 dual-scale dial, diaphragm-actuated differential pressure-indicating gage, with a built-in electrical switch. This switch is used for tripping alarms and/or shutting down equipment. It also includes an adjustable (K) knob, which allows you to make field adjustments without needing a 1/16 hex key. The rigid contact maintains your set-point if the differential pressure builds past the normal operating backpressure. The A20DP-K-15 (Rigid Contact), with a pressure range of 0-15 psi, is intended to monitor and indicate oil, fuel or water filter restriction and can reduce the risk of dangerously high pressure which may rupture the filter, resulting in contaminants entering the system. A polished stainless-steel bezel and O-ring seals help protect this rugged instrument from the external environment. Contacts have a self-cleaning motion to ensure electrical continuity. The A20DP-K-15 (Rigid Contact) features a beryllium copper diaphragm sensing element and a 1/8-27 NPTM brass process connection. The adjustable limit contact is an SPST contact; pilot-duty only, 2A @ 30 VAC/DC; closed when the low limit is met, and open when the pointer is in normal operating range. Direct replacement for PDMU, Alextronix (Model 05371469). Monitors Engine Oil and Fuel Filters Actuates Alarm or Shutdown System When Filter Becomes Clogged Combination Indicating Gage and Limit Switch Actuates Filter Backwash Signals Coolant Loss or Aeration On Engine Water Pump
